BUILT IN THE USA
-
Speed: 20 MPH Path/Street Legal In All 50 States
-
Per Charge: 35 MILES -
Weight: 46 lbs + Battery 7.2 lbs -
Frame: Aluminum 6061-T6 with the signature arched top tube -
Motor: Direct Drive 400W (575W Peak) -
Battery Type: Down Tube Removable 513 WH -
Battery Cells: 50 X Samsung SDI 18650.29E
-
Battery Charger: 36v Downtube Battery Charger
-
Motor Controller: 36V 16A
-
Power Application: Variable 1/2 Twist Throttle -
Derailleur : SRAM X4 – 8 Speed -
Fork Type: Chromoly Rigid Fork -
Stem: Fixed 40° Stem -
Headset: Cartridge Bearing Zero-Stack 1 1/8 -
Handlebar: Riser -
Steerer Tube: Threadless 1 1/8″
-
Brakes: Promax DSK-715 w/ BB5 Pads -
Tires: 26″ x 2.4in Off-road -

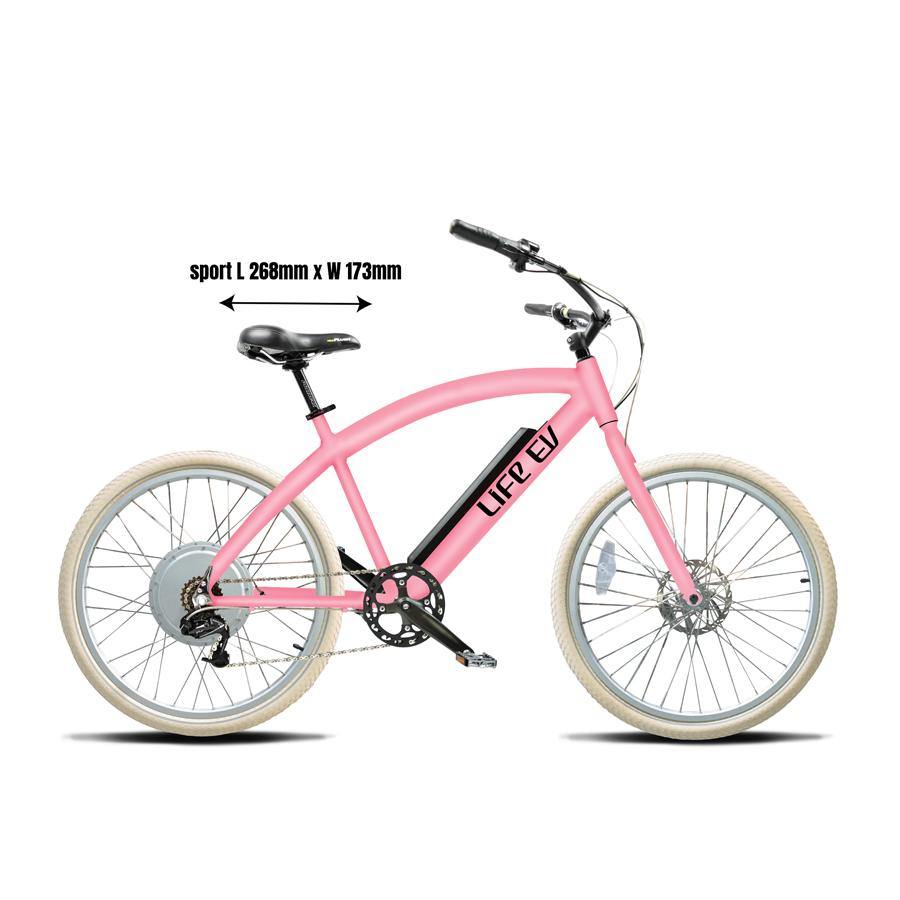

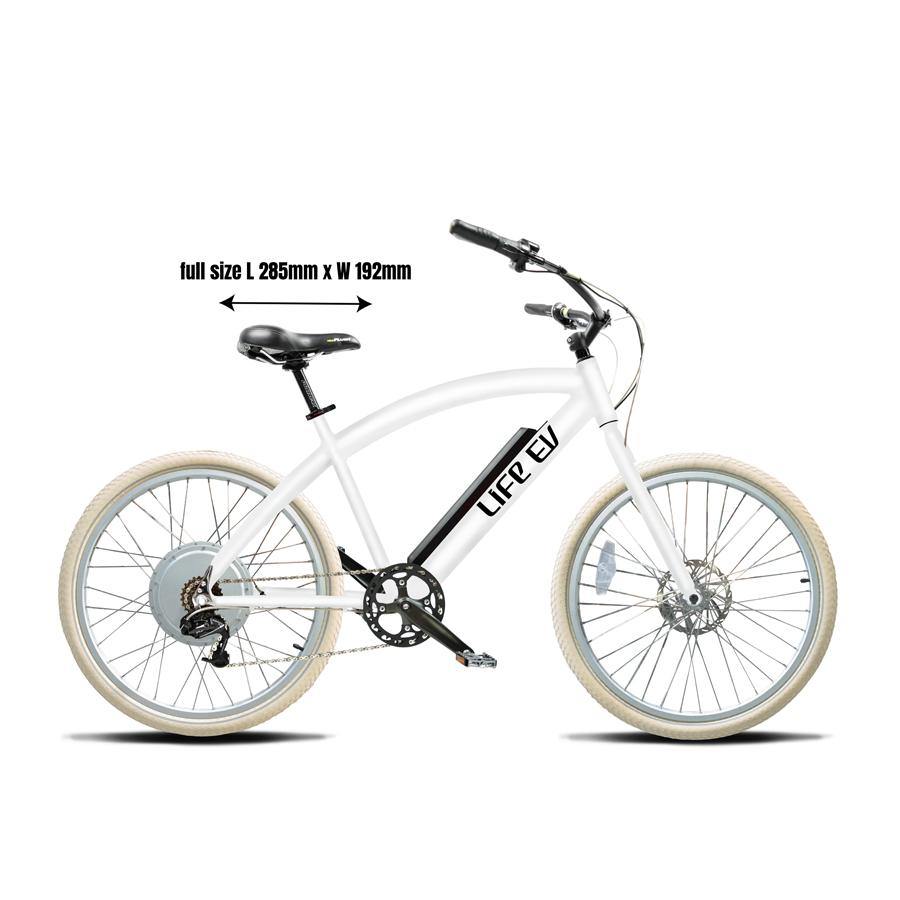

Saddle: Velo Plush 10.6 " x 6.8 " -
Rims: Triple Wall Aluminum 26″ x 36H x 12G -
Type: Class 2 e-bike
User Guide
Unpack and Assemble Video
Rider Heights: 5'6" - 6 '9"
Frame Size: 19"
Handlebar Height: 40"
Handlebar Reach: 16.5"
Seat Height *Measured from the ground: 41"
Standover Height: 32"
Total Length: 72"
Wheelbase: 50"
Wheel Diameter: 26"
Chain Stay Length: 18"
Head Tube Length: 6"
Top Tube Length: 25"
Frame Size: 19"
Handlebar Height: 40"
Handlebar Reach: 16.5"
Seat Height *Measured from the ground: 41"
Standover Height: 32"
Total Length: 72"
Wheelbase: 50"
Wheel Diameter: 26"
Chain Stay Length: 18"
Head Tube Length: 6"
Top Tube Length: 25"
| Rider Heights | Frame Size | Handlebar Height |
| 5'6" - 6 '9" | 19" | 40" |
| Handlebar Reach |
Seat Height |
Standover Height |
| 16.5" | 41" | 32" |
| Total Length | Wheelbase | Wheel Diameter |
| 72" | 50" | 26" |
| Chain Stay Length | Head Tube Length | Top Tube Length |
| 18" | 6" | 25" |
Shipping: FREE Shipping Continental US or FREE Local Delivery.
Easy Returns: If you choose to return the bicycle, we will inspect it for damage. If there is none, you will receive a full refund and you only pay the return shipping. More Details Click Here
TECHNICAL KEY FEATURES
This custom electric bike is for those who enjoy adding a personal touch. Choose your frame type, e-bike color, saddle type and tire color. With a quick turnaround, you’ll be riding in style in no time.
Speed
Motor
Range
Frame
Saddle
LIMITED-EDITION
Cruiser e-Bike is a limited-edition series designed to be an expression of yourself. We guarantee the custom colors will instantly grab attention as you cruise around with top-of-the-line components geared for easy rides and commuting.
IT YOUR CHOICE!

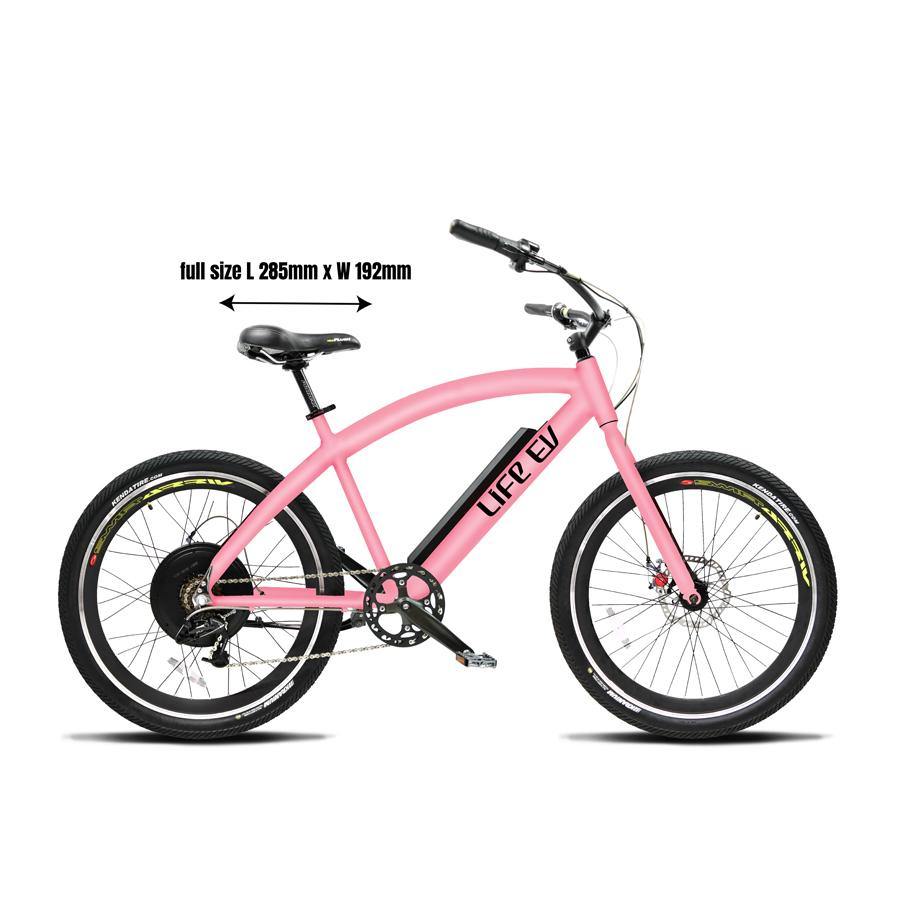

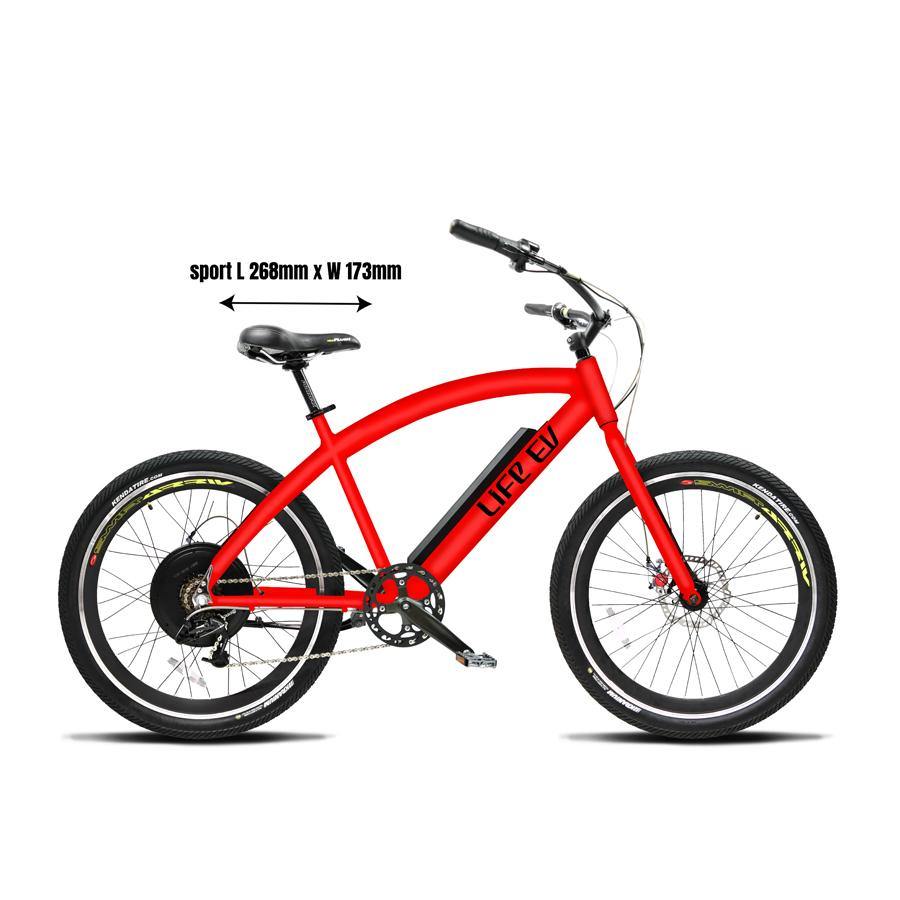

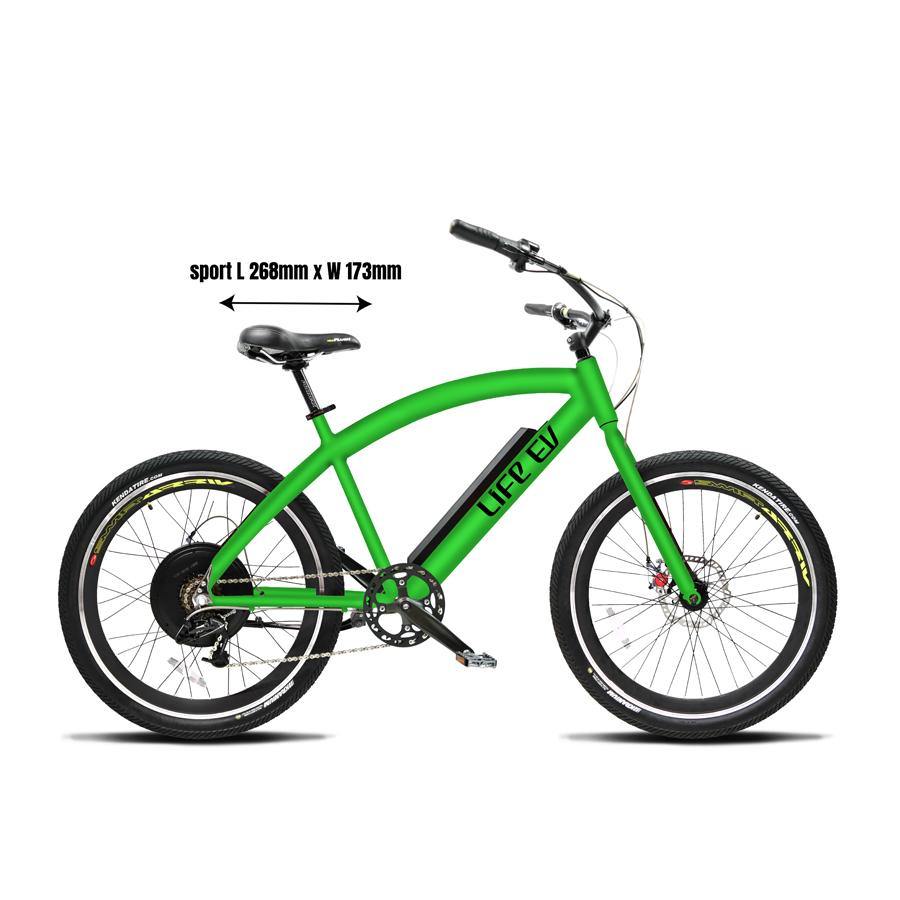

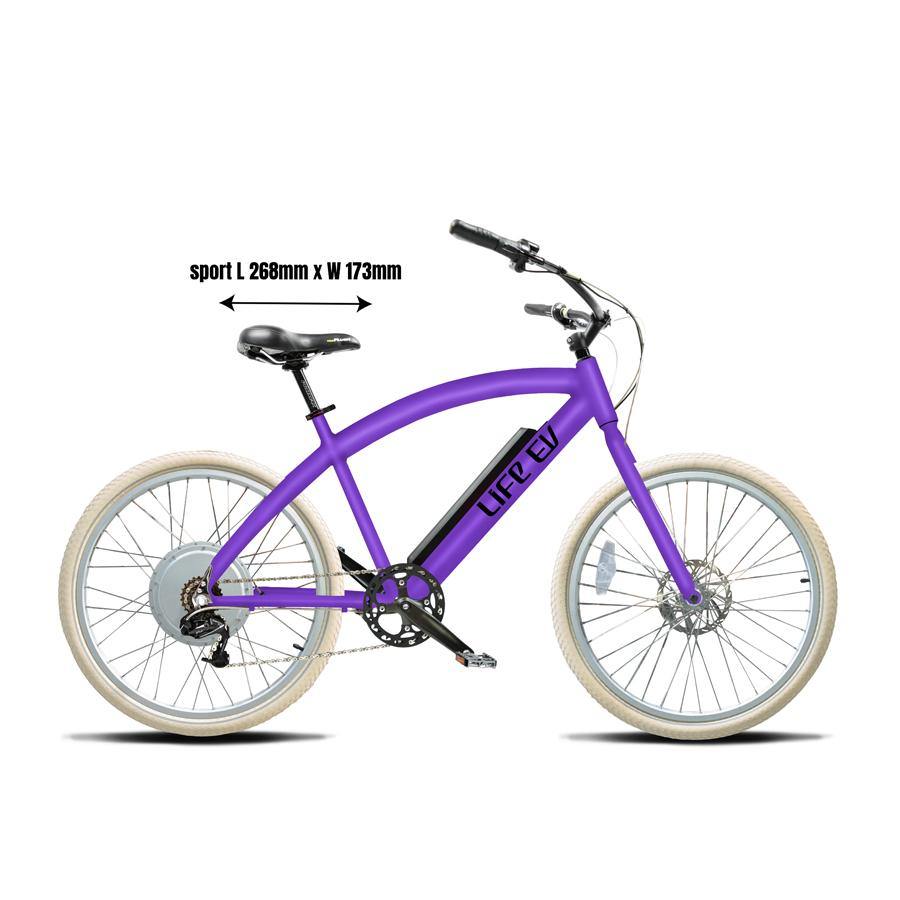

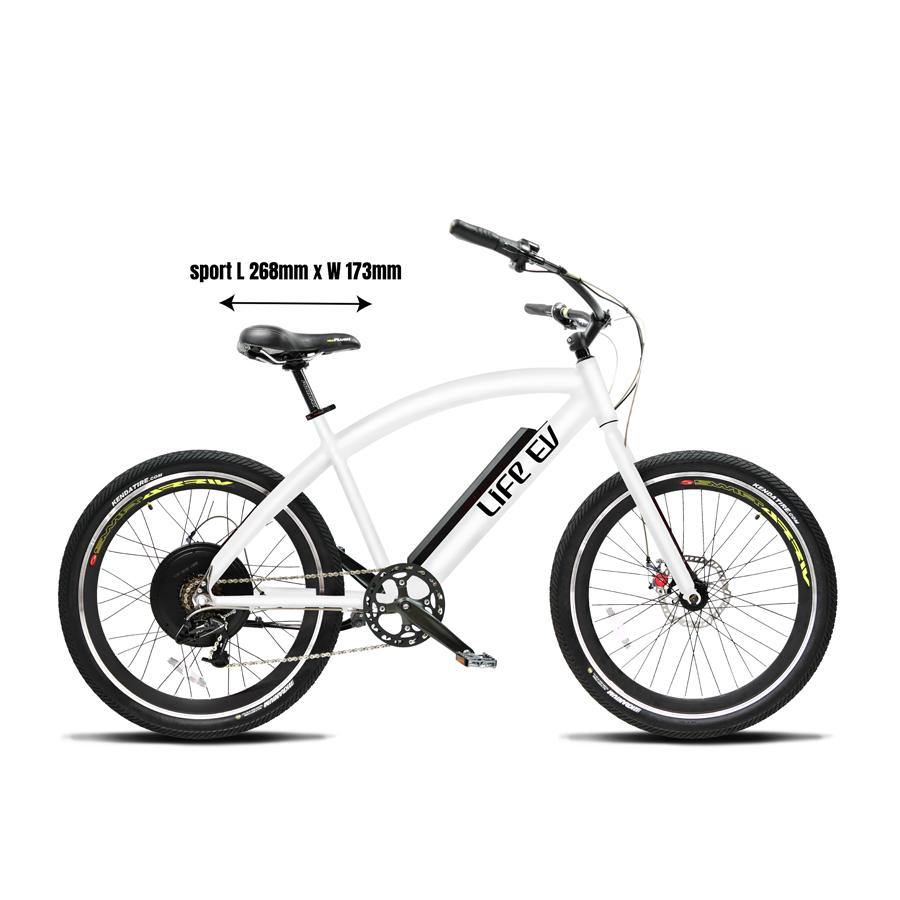

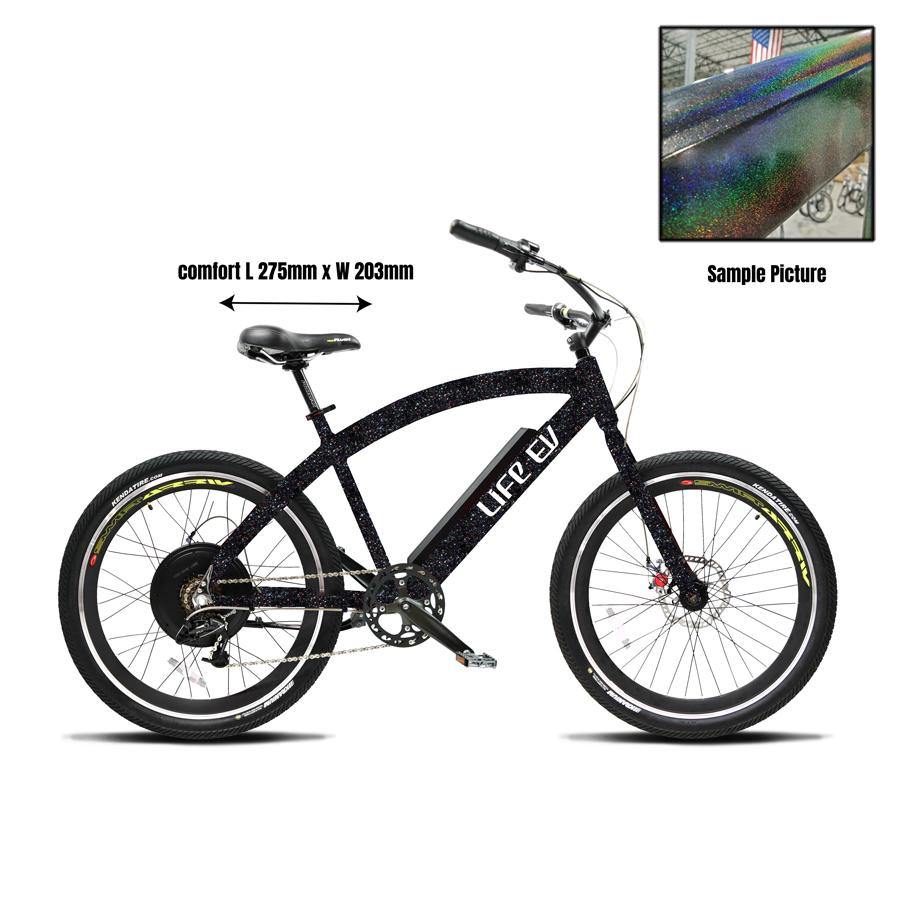

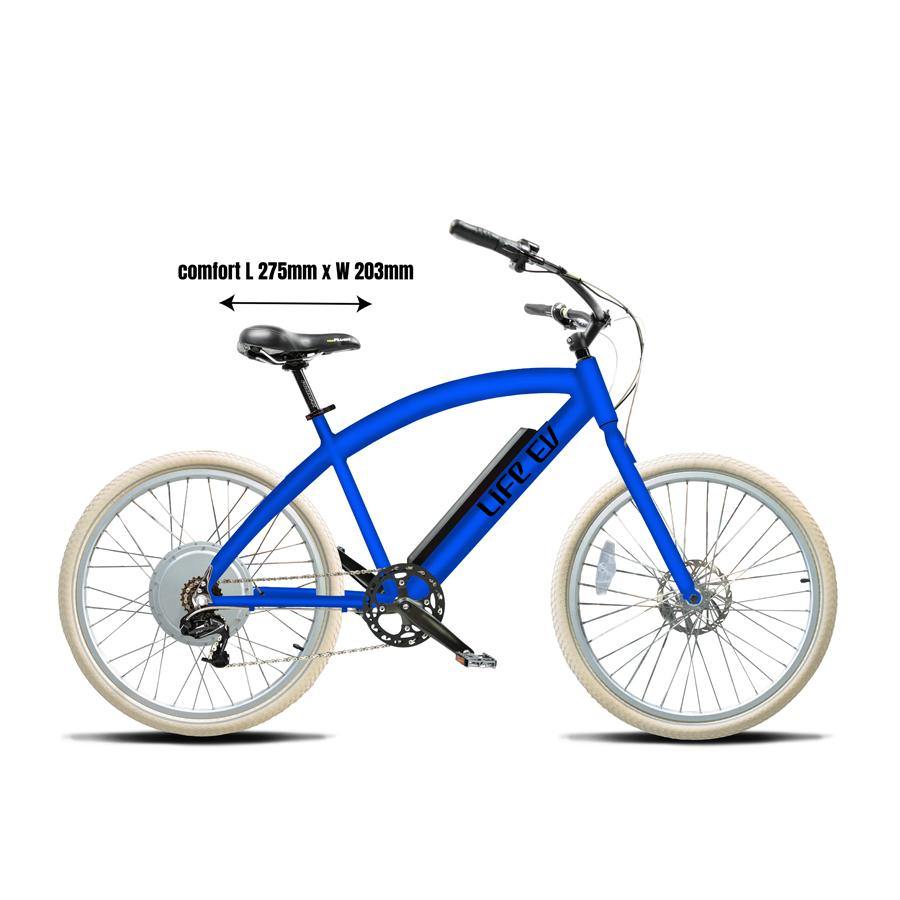

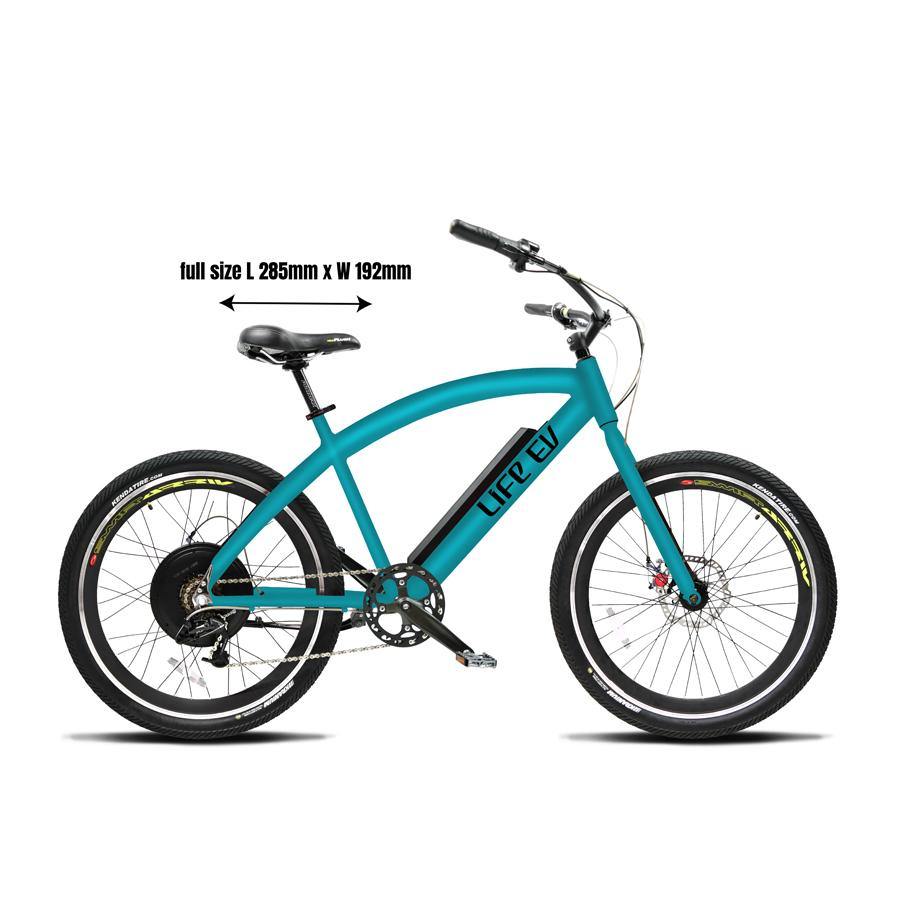

Take the scenic route to your destination on your Life EV electric bicycle. This e-Bike is offered with your choice of either an arched top-tube or a step-thru frame,10 color options, 3 saddle styles, and a choice ofcream or black tirescreating endless possibilities.
For the final touch, you can customize your e-Bike with your name (up to10 characters). Please allow up to 3 weeks of processing for custom models.
INSPIRED TO MAKE YOUR OWN?
Create something eye-catching by customizing your ride with your own touch of flair. Choose from an endless variety of colors!
MADE IN USA WITH GLOBAL COMPONENTS
Life EV has partnered with an all-star network of high-quality component manufacturers that read like a “who’s-who” in the cycling industry. Among the more than 20 brands are SRAM, Promax, KMC, Avid, Gyes, Velo, Truvativ, Continental, and Kenda.
STAY TO LAST
BATTERY
Downtube “In-frame” battery pack. Built-in LED indicators show the state of charge by pressing a spring-loaded button on the top of the battery. Built-in 1.0A USB port on a battery can be used to charge electronic USB-based devices or power USB-based peripherals on or off the bike.1000+ charge cycles. IP-67 Water Resistant. Average 25 to 35 miles on a 400w motorbike.
EFFICIENT DIRECT DRIVE
575W Peak
Lowest noise possible, quick disconnect for ease of use, and unmatched dependability. Goes up to 20 MPH Path/Street Legal In All 50 State, It's a Class 2 e-bike.
TWIST AND GO
THROTTLE LCD
This variable speed throttle was designed to be easy on the wrists, and even easier to operate. LCD screen with battery charge indicator for on-the-go battery charge reading.
