BUILT IN THE USA
Range
Up to 35 MILES
Speed
20 MPH Path/Street Legal In All 50 States
Classification
Class 2 e-bike
Bike Weight
49 Ibs + Battery 7.2 Ibs
Weight Capacity
285 Ibs
Derailleur
SRAM X4 – 8 Speed
Pedal Assist
No
Motor
Direct Drive 400W (575W Peak)
Battery
Down-Tube Removable 513 WH
Display/Throttle
LCD Screen / Half Twist Throttle
Controller
36V 16A
Motor
Direct Drive 400W (575W Peak)
Frame
Aluminum Arched Top Tube 6061-T6
Fork
Magnesium Suspension 100mm Travel
Stem
Tool Adjust 31.4 x 95mm Aluminum
Headset
Cartridge Bearing Zero-Stack 1 1/8
Handlebar
Riser
Brakes
Promax DSK-715 w/ BB5 Pads
Tires
26″ x 1.95in All-Terrain
Rims
Triple Wall Aluminum 26″ x 36H x 12G
Rider Heights: 5'6" - 6 '9"
Frame Size: 19"
Handlebar Height: 40"
Handlebar Reach: 16.5"
Seat Height *Measured from the ground: 41"
Standover Height: 32"
Total Length: 72"
Wheelbase: 50"
Wheel Diameter: 26"
Chain Stay Length: 18"
Head Tube Length: 6"
Top Tube Length: 25"
Frame Size: 19"
Handlebar Height: 40"
Handlebar Reach: 16.5"
Seat Height *Measured from the ground: 41"
Standover Height: 32"
Total Length: 72"
Wheelbase: 50"
Wheel Diameter: 26"
Chain Stay Length: 18"
Head Tube Length: 6"
Top Tube Length: 25"
| Rider Heights | Frame Size | Handlebar Height |
| 5'6" - 6 '9" | 19" | 40" |
| Handlebar Reach |
Seat Height |
Standover Height |
| 16.5" | 41" | 32" |
| Total Length | Wheelbase | Wheel Diameter |
| 72" | 50" | 26" |
| Chain Stay Length | Head Tube Length | Top Tube Length |
| 18" | 6" | 25" |
Shipping: FREE Shipping Continental US or FREE Local Delivery.
Easy Returns: If you choose to return the bicycle, we will inspect it for damage. If there is none, you will receive a full refund and you only pay the return shipping. More Details Click Here
TECHNICAL KEY FEATURES
Our Phantom XR is loaded with premium features like a stealthy design and components geared for trail-riding, commuting and mountain riding. This Class-2 e-bike features an aluminum 6061-T6 frame with the signature arched top tube and magnesium suspension. Our all terrain tires on top of an adjustable handlebar stem make our Phantom XR an ideal trail, street and mountain e-bike.
Speed
Motor
Range
Frame
Saddle

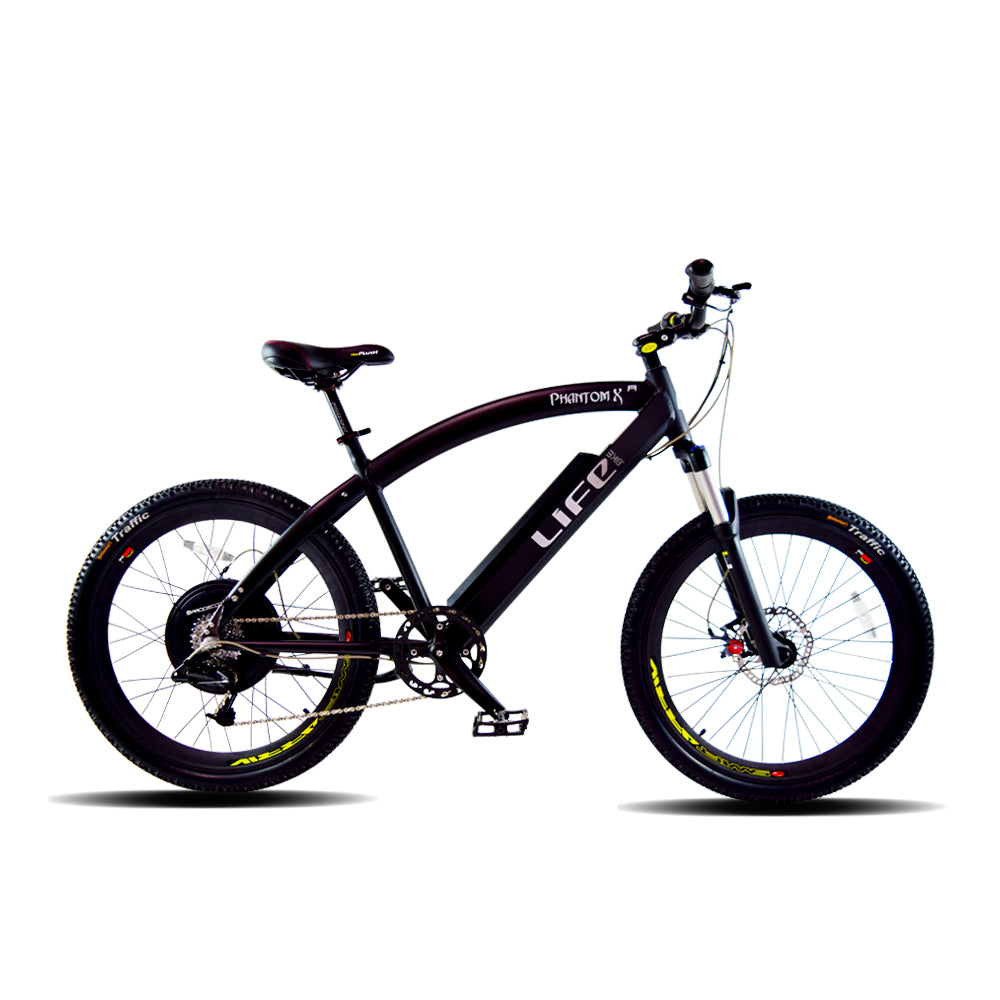

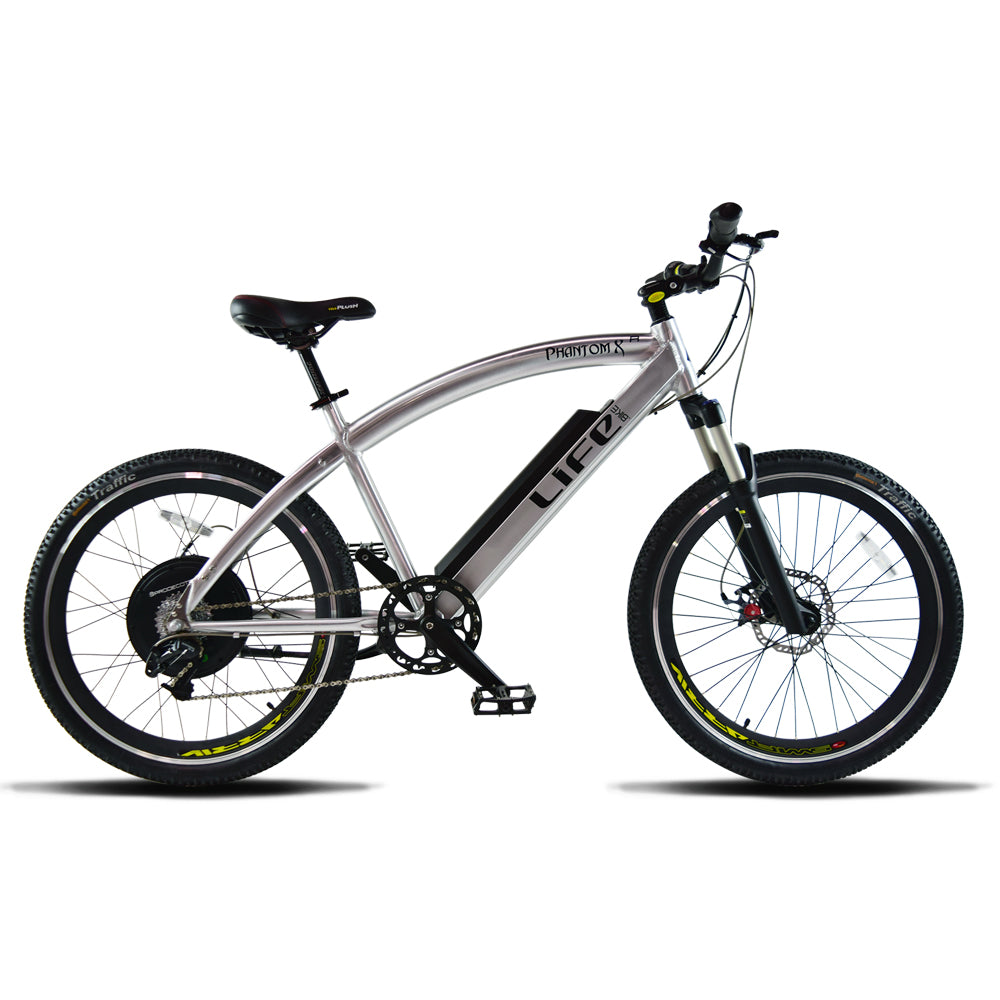

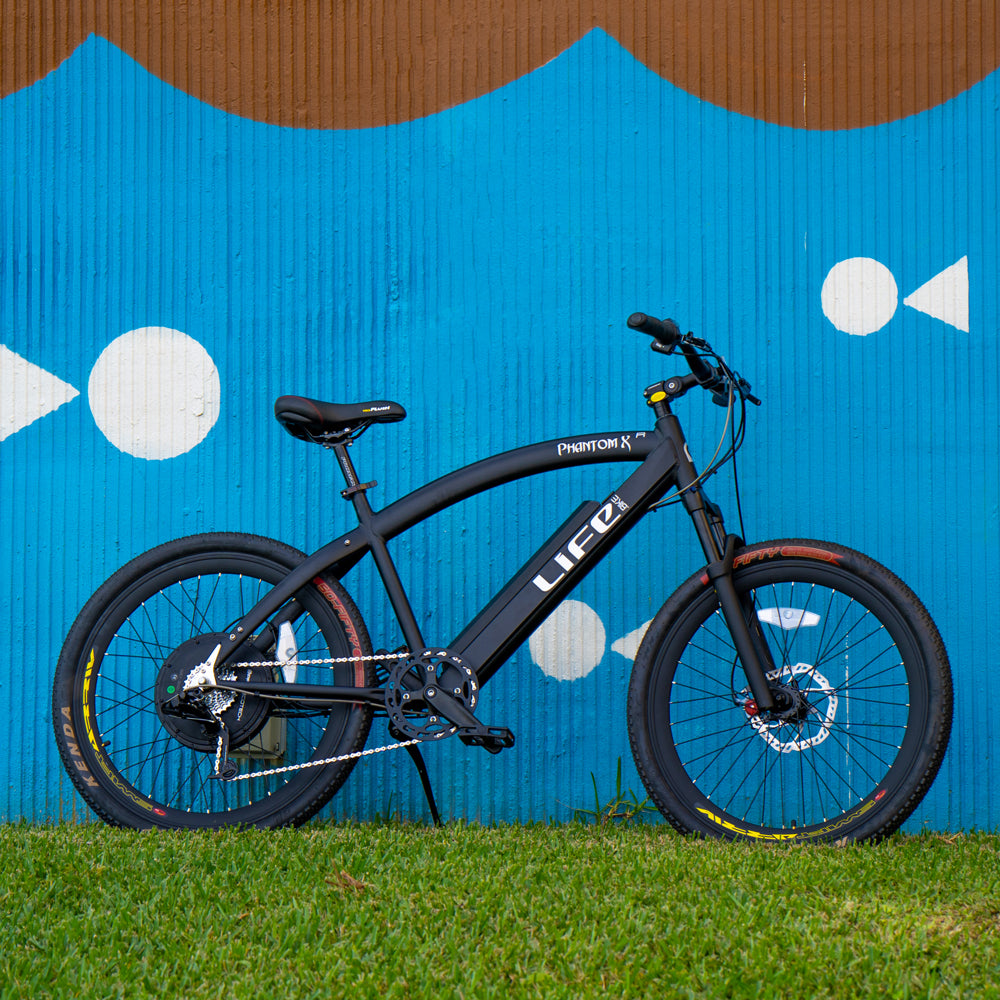

PHANTOM XR
Is a staple in our e-Bike line-up. The Phantom series is known for its stealthy design and components geared for trail-riding and commuting. This is the most versatile electric bicycle in its class suitable for mountain bike riding or street use.
VERSATILITY IN MIND
Built with the perfect mix of street or off-road components for maximum versatility. Tune your ride with adjustable handlebar stem, suspension fork with lock-out. All terrain tires are ready conquer any adventure.
LIFE EV SIGNATURE
The Phantom XR showcases our flagship design and commitment to quality. It's no wonder it's a popular choice with our customers.
Custom Your Ride
Create something eye-catching by customizing your ride with your own touch of flair. Choose from an endless variety of colors!
MADE IN USA WITH GLOBAL COMPONENTS
Life EV has partnered with an all-star network of high-quality component manufacturers that read like a “who’s-who” in the cycling industry. Among the more than 20 brands are SRAM, Promax, KMC, Avid, Gyes, Velo, Truvativ, Continental, and Kenda.
lasts longer
BATTERY
Downtube “In-frame” battery pack. Built-in LED indicators show the state of charge by pressing a spring-loaded button on the top of the battery. Built-in 1.0A USB port on a battery can be used to charge electronic USB-based devices or power USB-based peripherals on or off the bike.1000+ charge cycles. IP-67 Water Resistant. Average 25 to 35 miles on a 400w motorbike.
EFFICIENT DIRECT DRIVE
575W Peak
Lowest noise possible, quick disconnect for ease of use, and unmatched dependability. Goes up to 20 MPH Path/Street Legal In All 50 State, It's a Class 2 e-bike.
Performance Boost
Phantom XR Fork
The Phantom Fork will fit 26in, 27.5in, 29in wheel sizes and uses a 10mm x 100mm axel. It features lock out to lock or unlock the 100mm travel on the shocks. This fork is built with coil springs, a forged alloy crown, a sturdy one-piece magnesium lower leg, and 32mm steel tube stanchions. Compatible with post mount brakes using 180mm brake rotors.
TWIST AND GO
THROTTLE LCD
This variable speed throttle was designed to be easy on the wrists, and even easier to operate. LCD screen with battery charge indicator for on-the-go battery charge reading.
