BUILT IN THE USA
Range
Up to 35 MILES
Speed
20 MPH Path/Street Legal In All 50 States
Classification
Class 2 e-bike
Bike Weight
52 Ibs + Battery 7.2 Ibs
Weight Capacity
285 Ibs
Derailleur
SRAM X4 – 8 Speed
Pedal Assist
No
Motor
Direct Drive 400W (575W Peak)
Battery
Down-Tube Removable 513 WH
Display/Throttle
LCD Screen / Half Twist Throttle
Controller
36V 16A
Motor
Direct Drive 400W (575W Peak)
Frame
Aluminum Arched Top Tube 6061-T6
Fork
Magnesium Suspension 170mm Travel
Stem
Fixed 7° Stem
Headset
Cartridge Bearing Zero-Stack 1 1/8
Handlebar
Riser
Brakes
Promax DSK-715 w/ BB5 Pads
Tires
26″ x 2.4in Off-road
Rims
Triple Wall Aluminum 26″ x 36H x 12G
Rider Heights: 5'8" - 6 '9"
Frame Size: 19"
Handlebar Height: 46"
Handlebar Reach: 17.5"
Seat Height *Measured from the ground: 42"
Standover Height: 32"
Total Length: 73"
Wheelbase: 50"
Wheel Diameter: 27.5"
Chain Stay Length: 18"
Head Tube Length: 6"
Top Tube Length: 26"
Frame Size: 19"
Handlebar Height: 46"
Handlebar Reach: 17.5"
Seat Height *Measured from the ground: 42"
Standover Height: 32"
Total Length: 73"
Wheelbase: 50"
Wheel Diameter: 27.5"
Chain Stay Length: 18"
Head Tube Length: 6"
Top Tube Length: 26"
| Rider Heights | Frame Size | Handlebar Height |
| 5'8" - 6 '9" | 19" | 46" |
| Handlebar Reach |
Seat Height |
Standover Height |
| 17.5" | 42" | 32" |
| Total Length | Wheelbase | Wheel Diameter |
| 73" | 50" | 27.5" |
| Chain Stay Length | Head Tube Length | Top Tube Length |
| 18" | 6" | 26" |
Shipping: FREE Shipping Continental US or FREE Local Delivery.
Easy Returns: If you choose to return the bicycle, we will inspect it for damage. If there is none, you will receive a full refund and you only pay the return shipping. More Details Click Here
TECHNICAL KEY FEATURES
The Outlaw 400 all-terrain e-bike is the perfect choice for those who love to ride on trails and in the mountains. The magnesium suspension and 26” off-road tires will absorb the shock providing a smooth ride. Take on your next adventure in nature with this class-2 electric bike.
Speed
Motor
Range
Frame
Saddle

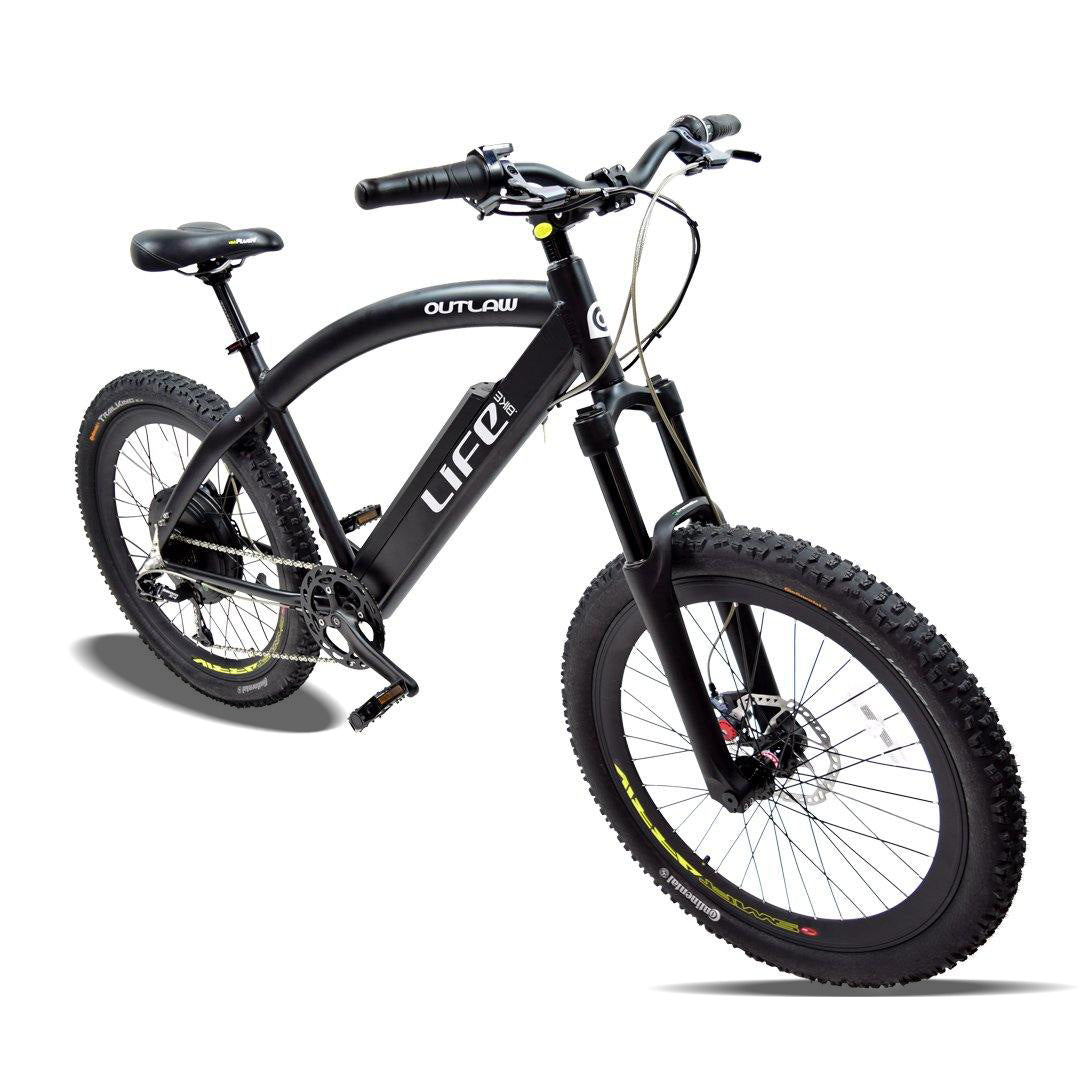

outlaw 400
One of the most rugged mountain e-Bikes on the market. It features a great all-around design for riders who want to enjoy various riding styles on all types of terrain.
ALL-TERRAIN
Go anywhere with our OUTLAW e-bike capable of handling various terrains such as mountains, marshes, hills, forest, deserts, valleys, and many more. Our off-road tires are some of the most durable tires available.
DURABLE AND STABLE
Our aircraft-grade aluminum frame is tough yet lighter than other frames in it's class. It has been thoroughly tested and strained to handle the most tenacious of riding styles.
MADE IN USA WITH GLOBAL COMPONENTS
Life EV has partnered with an all-star network of high-quality component manufacturers that read like a “who’s-who” in the cycling industry. Among the more than 20 brands are SRAM, Promax, KMC, Avid, Gyes, Velo, Truvativ, Continental, and Kenda.
lasts longer
BATTERY
Downtube “In-frame” battery pack. Built-in LED indicators show the state of charge by pressing a spring-loaded button on the top of the battery. Built-in 1.0A USB port on a battery can be used to charge electronic USB-based devices or power USB-based peripherals on or off the bike.1000+ charge cycles. IP-67 Water Resistant. Average 25 to 35 miles on a 400w motorbike.
EFFICIENT DIRECT DRIVE
575W Peak
Lowest noise possible, quick disconnect for ease of use, and unmatched dependability. Goes up to 20 MPH Path/Street Legal In All 50 State, It's a Class 2 e-bike.
Ultimate Performance
Outlaw fork
The Outlaw Fork will fit 26in, 27.5in, 29in wheel sizes and uses a 20mm x 110mm axel. It features a hydraulic rebound adjust. This fork is built with coil springs, a forged alloy crown, a sturdy one-piece 47mm magnesium lower leg, and 37.5mm aluminum 6061 tube stanchions. Compatible with post mount brakes using up to 203mm brake rotors.
TWIST AND GO
THROTTLE LCD
This variable speed throttle was designed to be easy on the wrists, and even easier to operate. LCD screen with battery charge indicator for on-the-go battery charge reading.
